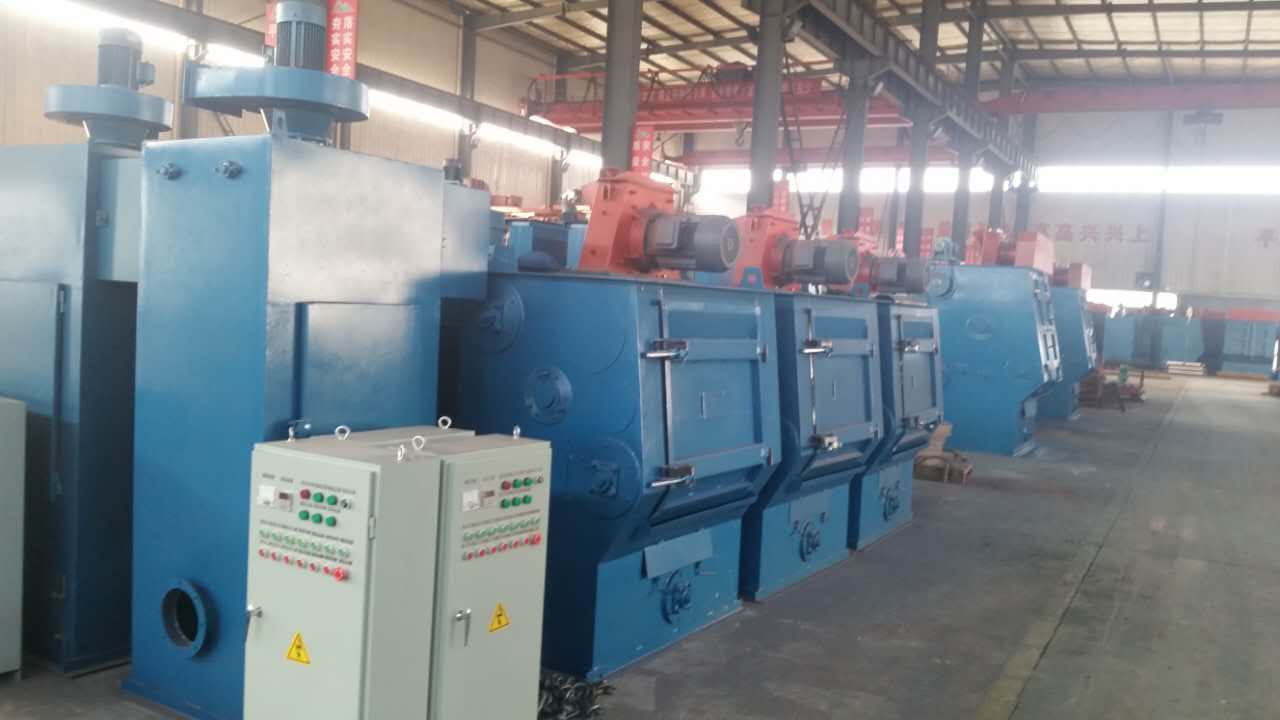

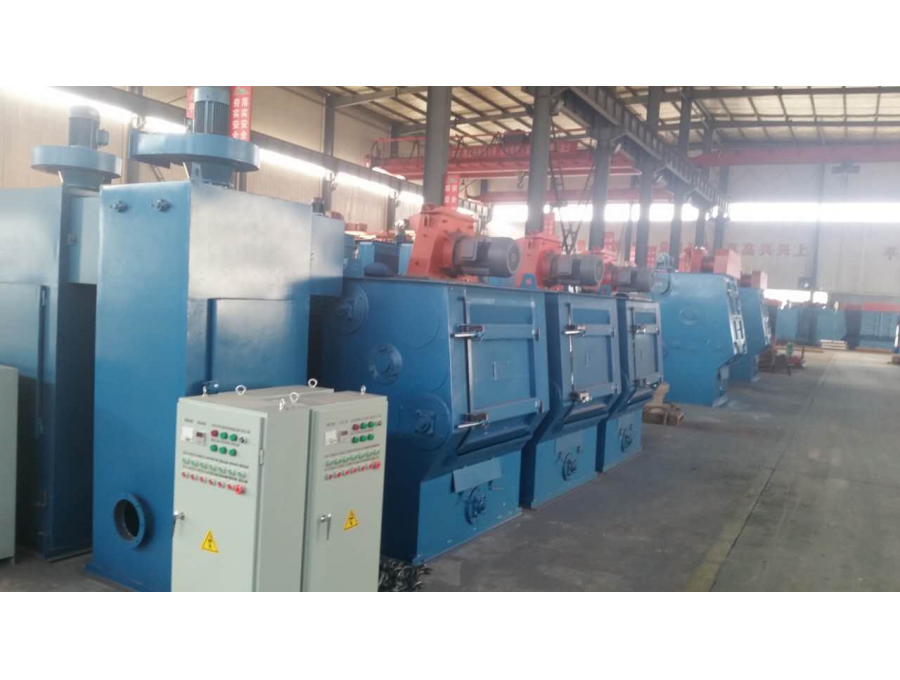

Q32 Tumble Belt Type Shot Blasting Machine
Q32 Shot blasting machine is suitable for surface rust removal and strengthening of workpieces in large or medium quantity batch production with many varieties. Cleaning workpiece must be the castings or heat-treated pieces which is not vulnerable to collision.
Technical parameters | |
Max.weight of single workpiece | 5kg |
Loading capacity per time | 50-60kg |
Productivity(Gray cast iron) | 300-800kg/h |
End disk diameter | 400mm |
End disk speed | 3.6r/min |
Effective volume | 0.09m3 |
Belt | Rubber |
Shot blasting wheel | 1 unit/4kw |
Dust collector | 1800m3/h |
Total power | 7kw |
Outline size | 1350*1350*2480mm |
Serial number | Item | Type | Q326 | Q3210 |
1 | Productivity | T/h | 0.6~1.2 | 2-2.5 |
2 | Feeding mount | Kg | 200 | 600 |
3 | Maximum weight of single piece | Kg | 10 | 30 |
4 | Diameter of end disk | mm | 650 | 1000 |
5 | Effective volume | M3 | 0.15 | 0.3 |
6 | Abrasive flow rate | kg/min | 120 | 180 |
7 | Ventilation capacity | M3/h | 2200 | 3500 |
8 | Power consumption | Kw | 12.6 | 16 |
9 | Outline dimensions | mm | 3681*1650*4200 | 3972*1960*4668 |
